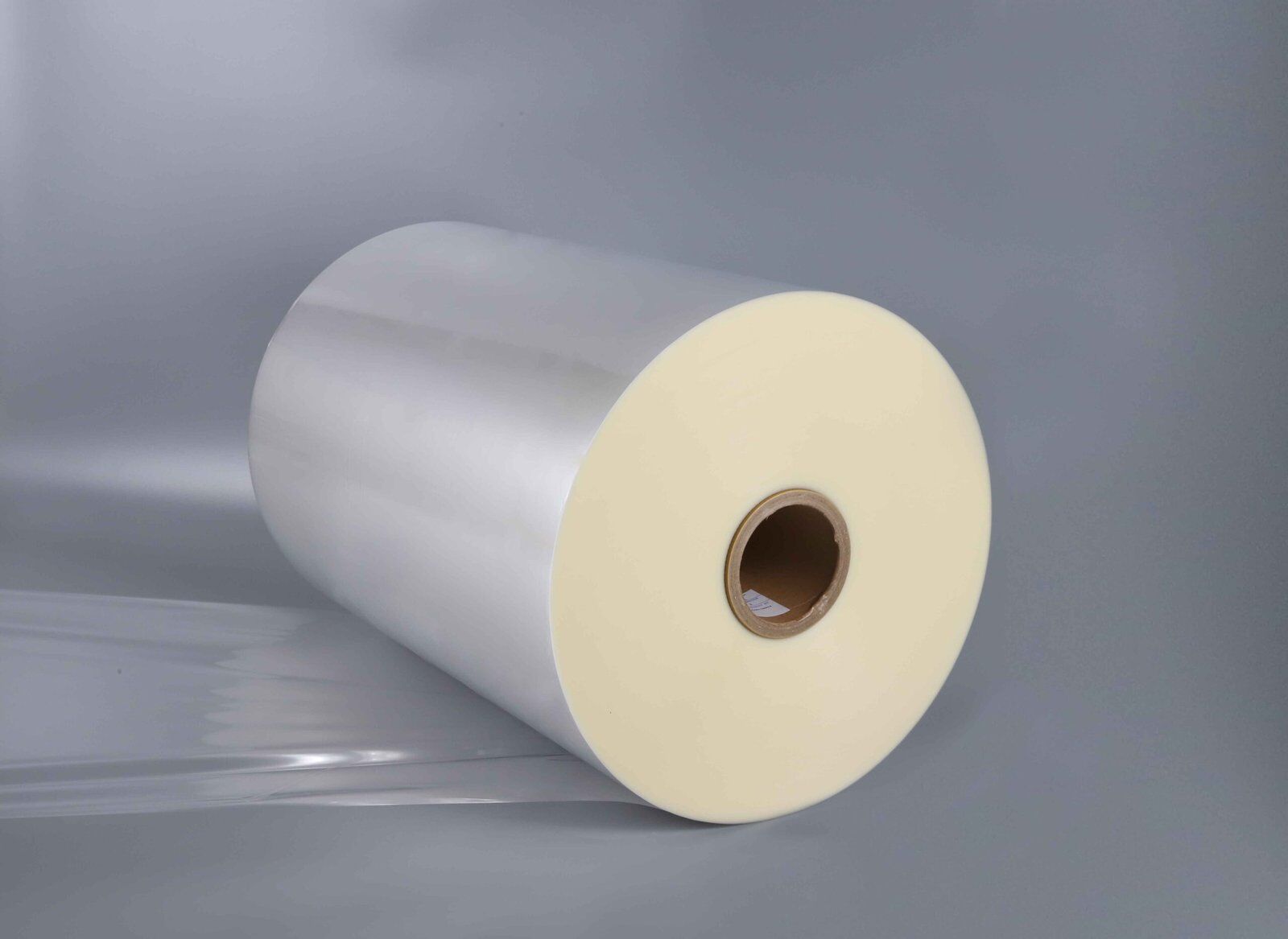

25mic*4000m BOPA Nylon film

Category Tags , ,
BOPA films are especially suitable for packing foods that deteriorate easily, frozen and cooked foods, vegetables, aquatic products and medical machines, electronic products, etc.

Additional information

Specifications

AA/A/A1
Thickness

25μm
Corona

Inside; Bothside
Width

350mm-1500mm
Length

4000m
Paper Core

3''(76mm)
Application

for pharmaceutical packing
ASK FOR A QUOTE

Nylon Film Technical Date

1. Thickness : 25µ
2. Thickness tolerance : ± 3% maximum
3. Density : 1.15
4. Surface tension (corona treated surface): > 52 dyne
5. Haze : < 3%
6. Gloss : > 90
7. Heat shrinkage: < 2% (160°C, 5 min)
8. COF : 0.3-0.5
9. Puncture resistance : 8N
10. OTR : < 50 cc/m3.day.atm (23°C, 0% RH)
TDS for Nylon 25mic

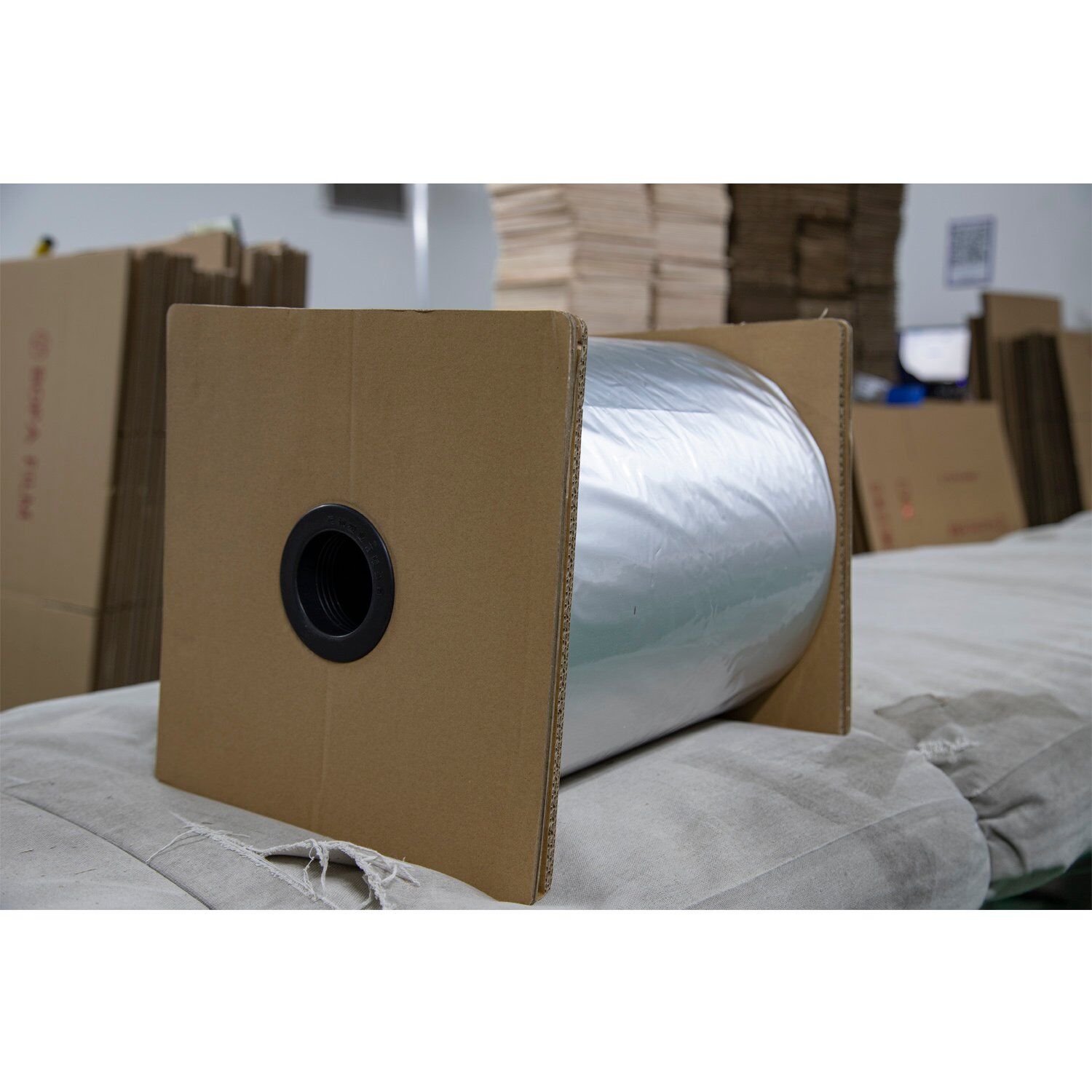

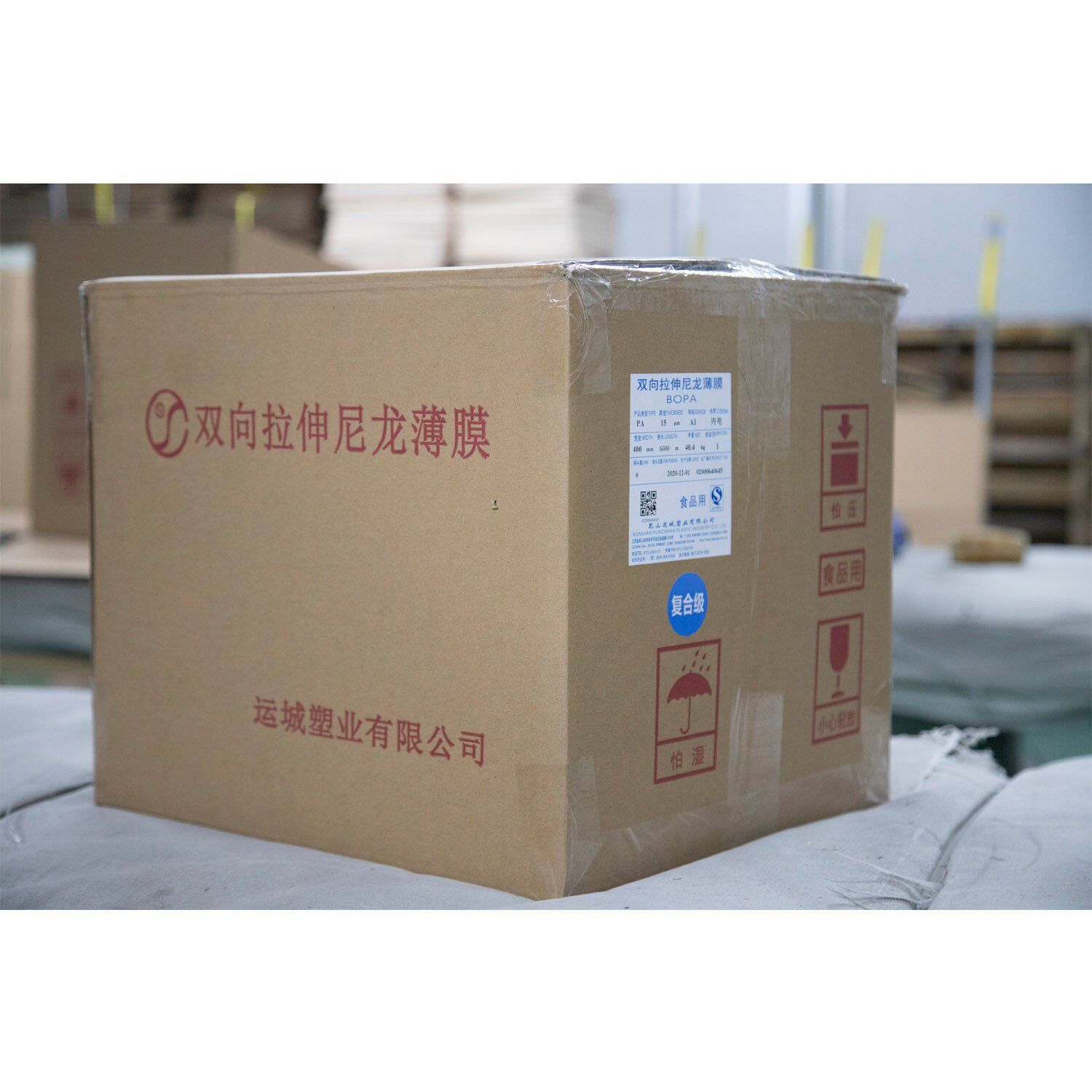

Package Details

(3″ paper core) Al-plastic film // Plywood // Plug // Carton // Pallet // Wrapping film; 9 reels per pallet
1、Packing with aluminium foil enclosed tight and neatly taped.
2、Roll core must be stored with the desiccant，and not allowed to be out of shape, collapse or dent
3、labels on cores, aluminium foil, cartons must be the same and in one direction.
4、Wooden screen of every roll must have one packing strap, products with a width over 900mm must have two more straps.

Product Details:

Biaxial oriented polyamide (BOPA) film (also called Nylon Film) meets nearly all expectations of modern and future first-class applications, whether food or non-food. Especially suitable for packing foods that deteriorate easily, frozen and cooked foods, vegetables, aquatic products and medical machines, electronic products, etc.

Features

  1. Excellent tensile, impact and piercing strength
  2.  Puncture and impact resistance
  3.  Excellent barrier to gases (oxygen, nitrogen, carton dioxides) and flavours/odours
  4.  High resistance to oil, greases, hydrocarbons, chemicals
  5.  Easy thermo-formability
  6.  High Transparency
  7.  Optimal printability
  8.  Wide applicable temperature range
  9.  Easy laminating with other films(such as PE, EVA, PET, CPP and aluminium foil)

Examples

  • for pharmaceutical packing: Infusion bag; Medical blister

Laminated Structures

  • Two Layer Lamination PA/CPE(15/70)
  • There Layer Lamination BOPA/AL/CPP(25/09/70)

Related products

We have specialized in manufacturing Nylon film (BOPA) films for 18 years.  Sample for free.
